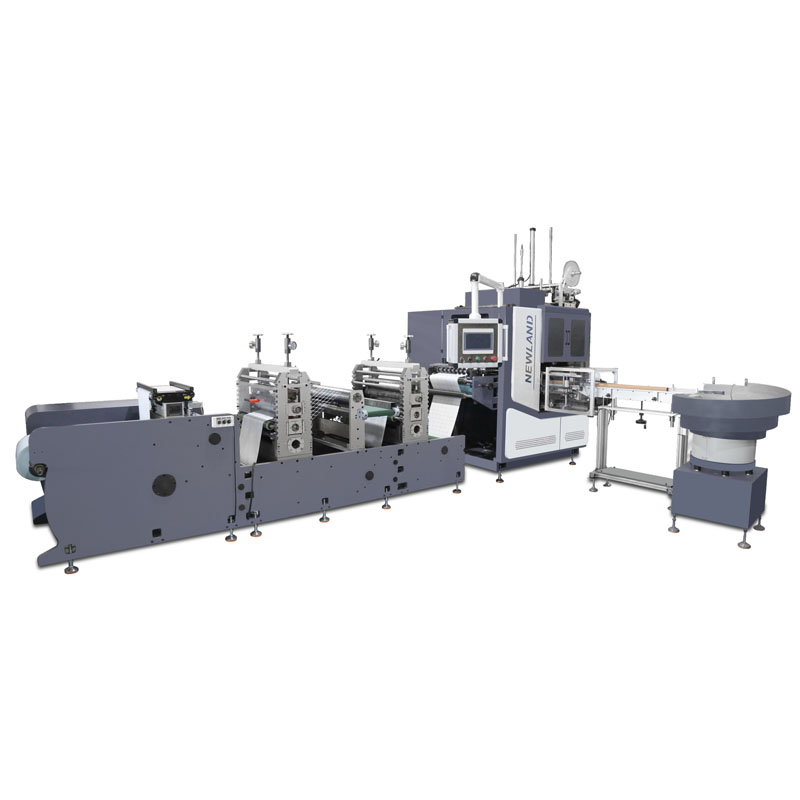

Fully automatic glue free slitting and rewinding machine
Fully automatic glue free slitting and rewinding machine
  • Products Details

Main feature
1、no glue, no folding, automatically cut off after automatic winding.
2、High speed and stability, 3 times a minute can be finished.
3、The winding adopts the hook arm lifting mode, the maximum winding diameter of 750MM, no manual holding.
4、Full servo control of the machine, to achieve automatic meter and automatic metering of finished roll output functions.
5、The vibrating disc is optional to realize automatic core threading and full automatic operation.
Prameter configuration

MODEL BF-450 BF-570
Maximum unwinding diameter 750mm 750/1200mm
Maximum winding diameter 180mm 180mm
Maximum operating speed 150m/min 150m/min
Minimum winding width 30mm 30mm
Power source 380V 50Hz 380V 50Hz
Power 6Kw 8Kw
Overall dimension 1720×1330×2350 1720×1450×2350
Weight 730Kg 800Kg
