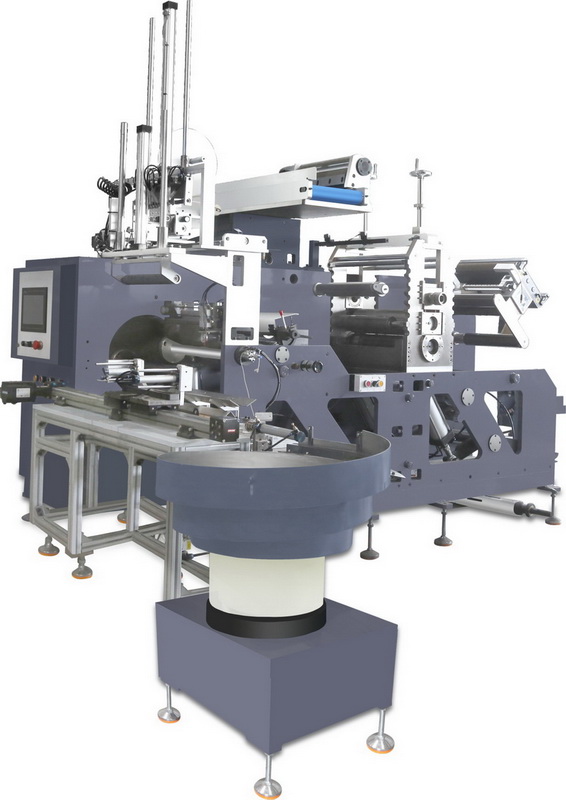

HM-350/450/570YDFTJ Adhesive Free Round Knife Slitting Machine

Products Details

Main feature
1、no glue, no folding, automatically cut off after automatic winding
2、High speed and stability, 3 times a minute can be finished
3、The winding adopts the hook arm lifting mode, the maximum winding diameter of 750MM, no manual holding
4、Full servo control of the machine, to achieve automatic meter and automatic metering of finished roll output functions
5、The vibrating disc is optional to realize automatic core threading and full automatic operation
Prameter configuration

MODEL	MF-350	MF-450	MF-570
Maximum unwinding diameter	750/1200mm	750/1200mm	750/1200mm
Maximum winding diameter	180mm	180mm	180mm
Maximum operating speed	150m/min	150m/min	150m/min
Minimum winding width	30mm	30mm	30mm
Power source	380V 50Hz	380V 50Hz	380V 50Hz
Power	8Kw	9Kw	10Kw
Overall dimension	2550×1700×2200	2550×1800×2200	2550×1920×2200
Weight	1600Kg	1800Kg	2000Kg
