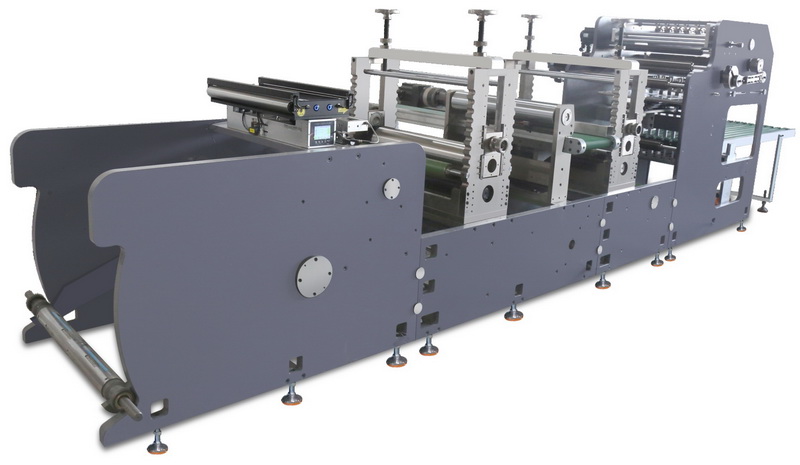

HM-350/450/570YDMQ High Speed Round Cutter (Single/Double Seat)
HM-350/450/570YDMQ High Speed Round Cutter (Single/Double Seat)
  • Products Details

Main feature
1、 Die cutting seat is independent high-precision wall plate different from the traditional bottom roller wall plate inside
2、 Die-cutting adopts a three-roll structure to greatly reduce the runout of the magnetic roller, and can achieve a stable high-speed operation of 35g bottom paper 150 meters/minute
3、Single and double seats are optional
4、 Can be directly connected with the automatic glueless strip winder without the need for a paper storage machine, saving the space of the paper storage machine
5、The winding adopts the hook arm lifting mode, the maximum winding diameter of 750MM (optional 1200MM), no manual lifting
6、Full servo control of the machine, to achieve automatic meter and automatic metering of finished roll output functions
Technical parameter

MODEL MQ-350 MQ-450 MQ-570
Maximum volume change speed 1200mm 1200mm 1200mm
Minimum winding speed 1200mm 1200mm 1200mm
Maximum operating speed 150m/min 150m/min 150m/min
Power source 380V 50Hz 380V 50Hz 380V 50Hz
Power 9/14Kw 9/14Kw 9/14Kw
Overall dimension 2710×1530×2500
3600×1530×2500		 2710×1630×2500
3600×1630×2500		 2710×1750×2500
3600×1750×2500
Weight 2100/3000Kg 2300/3200Kg 2500/3400Kg
