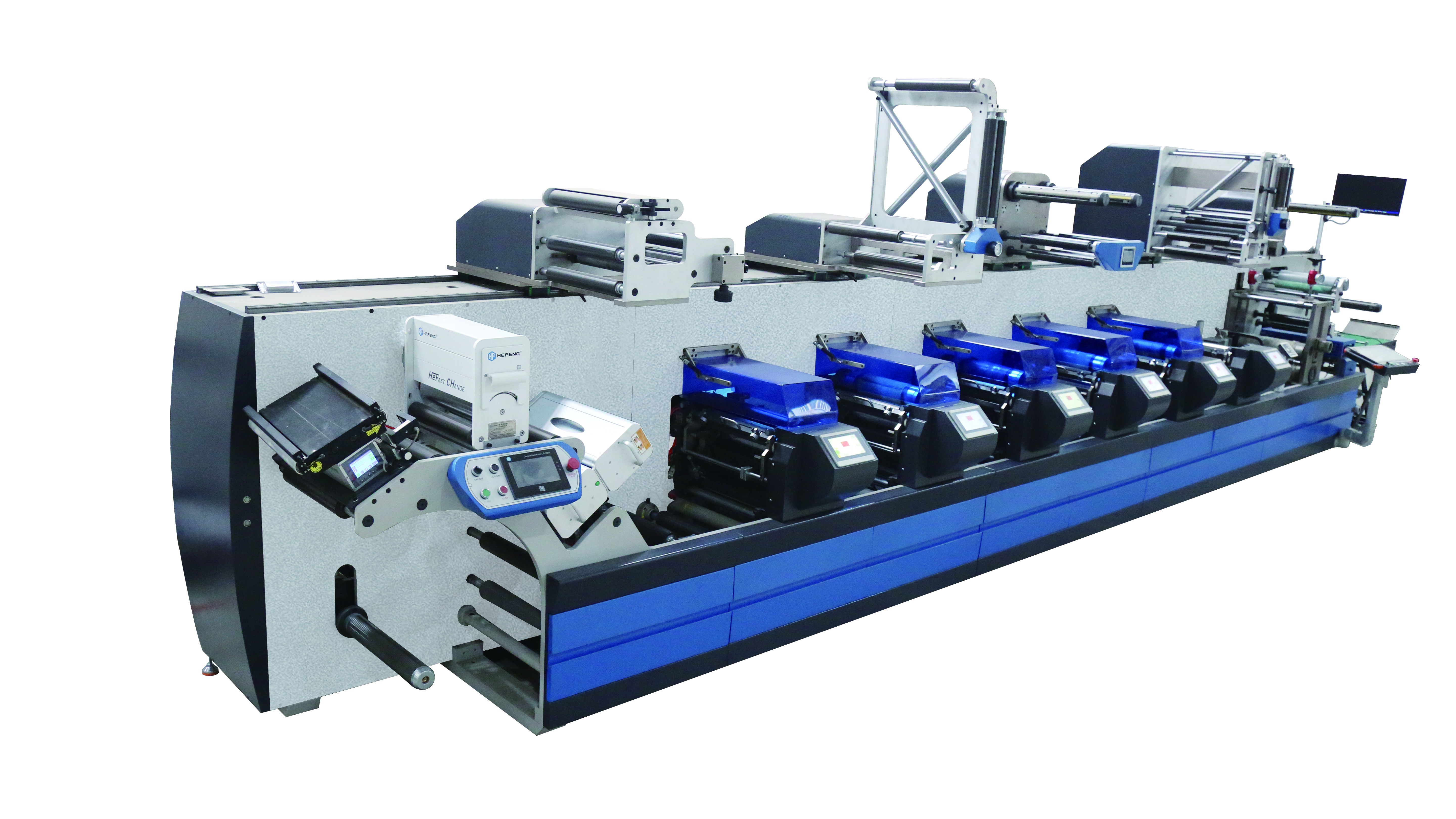

Horizontal Dual Servo Type Flexo Printing Machine
Horizontal Dual Servo Type Flexo Printing Machine
  • Products Details

Product Description

1:turn bar movable 2:anti static bar:Hefeng Chinese famous brand 3:Delam and relam movable   4:cold stamping movable 5:laminating movable 6:web cleaner two side Hefeng brand 7:Corona treatment Hefeng brand 81 rotary die cutting station 1servo 9:stacker conveyor 1 servo 1:ABB/INOVANCE SERVO OPTIONAL 2:Beckhoff Germany INOVANCE OPTIONAL 3:WEB GUIDE :BST GERMANY 4:HOT AIR SYSTEM OPTIONAL 5:UV:IUV OPTIONAL 6:DIE CUTTING STATION:3 ROLLER 7: hydraulic loading and unloading

horizontal dual servo type flexo printing machine
Feature: This unit horizontal type flexo press is our newest machine which aims to produce high quality labels with high speed and IML label function. This machine has a compact size and a short web path, which keeps material wastage to a minimum. The full machine adopts all servo motors which keep the tension of film or paper to be smoothly and stably printed at high speed. It is the best machine to print high quality labels.

Main technical parameters:

Model RYW-370S RYW-450S RYW-550S
Max.paper width 380mm 460mm 560mm
Max.Printing width 370mm 450mm 550mm
Color quantity 6 colors 6 colors 6 colors
Max.Unwind Diameter 800mm 800mm 800mm
Max.Rewind Diameter 800mm 800mm 800mm
Max.printing speed Max 150m/min Max 150m/min Max 150m/min
Printing Precision accuracy ±0.1mm ±0.1mm ±0.1mm
Rotary die cutting accuracy ±0.15mm ±0.15mm ±0.15mm
Range of printing 250-600mm(10"-24") 250-600mm(10"-24") 250-600mm(10"-24")
Max.label die cutting speed Max 120m/min Max 120m/min Max 120m/min
Pre -registration Color sensor Color sensor Color sensor
Material All Paper material ,Aluminum pure or laminated material ,some of non- shrinking film
Thickness of material You can check with the thickness to be confirmed with engineer
Power 75KW 50/60HZ 3Phase 380V 85KW 50/60HZ 3Phase 380V 95KW 50/60HZ 3Phase 380V
Printing plate thickness 1.14 or 1.7mm 1.14 or 1.7mm 1.14 or 1.7mm
Double side tape 0.38mm 0.38mm 0.38mm
Air Supply 0.8KPA-0.9 1.5KW-2.2KW air compressor
Max current 80A 80A 80A
Machine size about 9000x1700x2400mm about9000x1800x2400mm about 9000x1900x2400mm
Machine weight about 5000KG about 5200KG about 5500KG
can be customized according to clients' different requirements.
