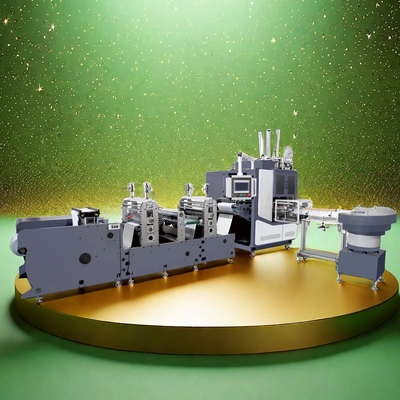

HM-350/450/570YDMQ High Speed Rotary Die Cutting Machinery (Single/Double Seat Station Head) Double Station Rotary Die Cutting and Slitting Machine Online Inline with the 4 spindle Label turret rewinding machinery for self adhesive paper sticker lables The HM-350/450/570YDMQ Double Station rotary die cutting and slitting machine is an innovative new design that is equipped with high-precision rotary die cutting systems. It is specifically designed for handling blank adhesive label materials, allowing for seamless integration of die cutting, laminating (optional), and slitting processes and turret rewinding machine in a single machine. This machine offers a range of advanced features, including automatic meter counting, number counting, auto stop, web guide, auto inflation(turret rewinder), magnetic tension, and turret rewinding functions. One of the key selling points of the HM-350/450/570YDMQ Double Station rotary die cutting and slitting machine is its compact structure, allowing for space-saving installation and operation. With its rapid processing speed, high efficiency, and user-friendly interface, this machine is ideal for businesses looking to boost productivity and streamline their labeling processes. Additionally, the machine offers precise and accurate slitting capabilities, ensuring uniform and high-quality results with every use. The HM-350/450/570YDMQ Double Station rotary die cutting and slitting machine is also known for its stable and reliable performance, making it a long-lasting and dependable investment for any business. Its easy-to-operate design also allows for minimal maintenance, reducing downtime and increasing overall efficiency. Choose the HM-350/450/570YDMQ Double Station rotary die cutting and slitting machine for a comprehensive solution to your labeling needs. Main features: 1:Die cutting station(wall plate) is independent and high precision, different from the traditional bottom roller(wall plate) 2:Die cutting station adopt three roller structures to reduce the dancing of magnetic roller, and realize the stable and high speed running at 150m/min, and it can work for the 40gsm bottom paper, saving the material 3:single and double station is optional 4:can be online and inline with the automatic label production no glue turret rewinding machinery, advantage is no need the material storage rack, saving the space. 5:the unwinding part adopt the asynchronous motor to load the material, more stable than hydraulic or the pneumatic lifter. max unwinding diameter at 1200mm or 6000meters 6:Full servo driven for machine, it can work for both number counting and meter counting. 7:Heating fan can be stable productions at the cold weather, it can be easier for the waste scrapping 8:Scrapping waste can be mini 1mm, saving the material 9:Servo driven can realize the dotted line die cutting 10:Die cutting wall plate at thickness 38mm, can work stable running at high speed 11:Scrapping waste compare with snowball waste or magnetic waste rewinding, it can be realize non stop. Technical parameters: Model HM-350YDMQ HM-450YDMQ HM-570YDMQ Max Slitting speed 150m/min 150m/min 150m/min Max. Material Width 350mm 450mm 570mm Max. Unwind dia 1200mm 1200mm 1200mm Max. rewind dia 1200mm 1200mm 1200mm Accuracy rate ±0.10mm ±0.10mm ±0.10mm Max die cut speed 150m/min 150m/min 150m/min Voltage 380V/3P/50HZ 380V/3P/50HZ 380V/3P/50HZ Power 9/14KW 9/14KW 9/14KW Dimension 2710*1530*2500mm(single station) 3600*1530*2500mm(double station) 2710*1630*2500mm(single station) 3600*1630*2500mm(double station) 2710*1750*2500mm(single station) 3600*1750*2500mm(double station) Magnetic size 60T-150T 90T-198T 90T-198T Die cutting bottom paper 40-70gsm 40-70gsm 40-70gsm Machine weight 2100/3000KG 2300/3200KG 2500/3400KG
